Catalogue number | MUL15-3D | MUL27-3D | MUL38-3D | |
Max. design voltage | 15 | 27 | 38 | |
Nominal current A | 100 | 100 | 100 | |
Interrupt capacity asymmetric kA | 12 | 12 | 5 | |
B.I.L kV | 110 | 150 | 200 | |
Leakage distance mm | 215 | 450 | 700 | |

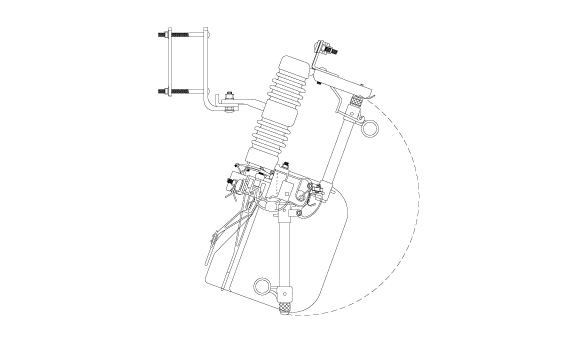

Arcing distance (A) mm | 274 | 293 | 317 | |
Distance (L) mm | 507 | 642 | 835 | |
Net weigth kG | 27,500 | 38,400 | 48,600 | |
Gross Weigth kG | 35,500 | 46,600 | 57,000 |

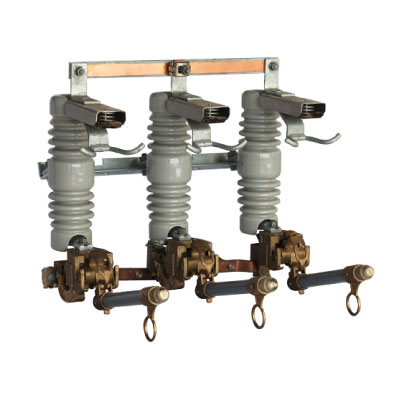

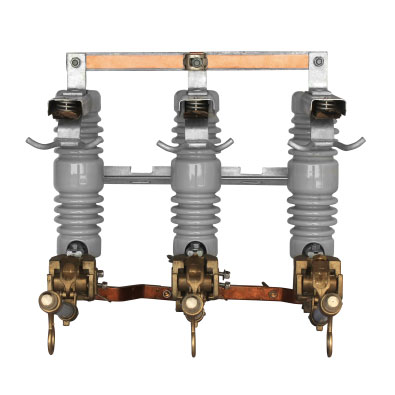

This is a three cutouts arrangement in one phase with the same characteristics that our fuse cutout offers, but this one also counts with a new and smart three-shot system that reduces significantly the need of reestablishing circuit whenever a failure occurs, ideal in remote or dificult access area. Since the fuse holder is not different to any regular cutout is compatible with any other brand.
